SurgiGear
Surgical Handpiece
Implant Contra Angle
Quick Swap Head Gear
Head gears can be removed and replaced easily, and thorough cleaned after treatment.
Greatly improves the efficiency of treatment and maintenance.
Hexagon Chucking
For distributing the stress of the bearing to the chuck, which effectively prevent bur jamming, and ensures the maximum torque (80N.cm).
DLC Coating Rotor
High hardness ensures that he rotor will not be deformed under high stress, effectively prevent bur jamming.
And provides extreme resistance to rust and corrosion for a long service life.
Remarkable Illumination
Fiber rod with excellent light transmission, superior invisibility and accessibility
during treatments, and also has high resistance to heat, which is disinfectable and sterilizable.
SurgiGear
Implant Contra Angle
Specification
Ratio
Max. speed(rpm)
Max. torque(N.cm)
Water
Chucking
For Bur(mm)
Body matrial
Coating
Weight(g)
Warranty
20:1
2k
80
External
Push Button
Ø2.35
Brass
Chrome
85
12 months
Code Fiber Optic
SG20KL
SG20K
●
-
Code: HDKXCL3
Ratio
Water
Chucking
For Bur(mm)
Warranty
3:1
External
Push Button
Ø2.35
12 months

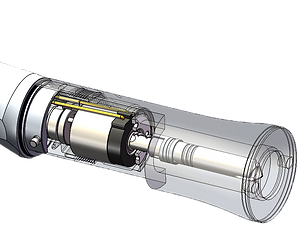

Generator Implant Contra Angle
Generator LED
The SG20LG is equipped with a built-in generator that allows it to produce optimal lighting at very low speeds.
It can withstand high temperatures and pressures, and is capable of at least 250 cycles of thermal cleaning and autoclaving. It is more durable and stable, providing a more reliable light system for clinical use.
_edited.png)
Easy Disassembly
Can be easily disassembled for thorough cleaning, and each disassembled part can be cleaned separately and accordingly to remove biological substrates. There is no need to use any tools for assembly or disassembly.
DLC Coating Rotor
High hardness ensures that he rotor will not be deformed under high stress, effectively prevent bur jamming.
And provides extreme resistance to rust and corrosion for a long service life.
Hexagon Chucking
For distributing the stress of the bearing to the chuck, which effectively prevent bur jamming, and ensures the maximum torque (80N.cm).
SurgiGear
Implant Contra Angle
Specification
Ratio
Max. speed(rpm)
Max. torque(N.cm)
Water
Chucking
For Bur(mm)
Body matrial
Coating
Weight(g)
Warranty
20:1
2k
80
External
Push Button
Ø2.35
Brass
Chrome
85
12 months
Code Light
SG20LG
SG20L
SG20
Generator
Fiber Optic
-
Code: SG45L
Ratio
Max. speed(rpm)
Water
Head angle
Light
Chucking
For Bur(mm)
Body matrial
Coating
Warranty
1:4.2
168k
External 3 Sprays
45°
Fiber optic
Push button
Ø1.6
Brass
Chrome
12 months
Code: SG45W
Ratio
Max. speed(rpm)
Water
Head angle
Light
Chucking
For Bur(mm)
Body matrial
Coating
Warranty
1:2.7
108k
External 3 Sprays
45°
Generator LED
Push button
Ø1.6
Brass
Chrome
12 months
Code: SG01L/SG01
Ratio
Max. speed(rpm)
Water
Light
Chucking
For Bur(mm)
Body matrial
Coating
Warranty
1:1
40k
External
Fiber optic/ non-optic
Twist tension
Ø2.35 with 40(L)
Brass
Chrome
12 months
Code: SGS
Ratio
Max. speed(rpm)
Water
Light
Chucking
For Bur(mm)
Body matrial
Coating
Warranty
1:1
40k
External
Non-optic
Twist tension
Ø2.35 with 40(L)
Brass/ Aluminium alloy
Chrome
12 months
Code: SGS
Ratio
Max. speed(rpm)
Water
Light
Chucking
For Bur(mm)
Body matrial
Coating
Warranty
1:1
40k
External
Non-optic
Twist tension
Ø2.35 with 40(L)
Brass/ Aluminium alloy
Chrome
12 months
